德國Diebold JetSleeve ? 2.0 端面環噴熱縮刀柄

發布日期2017.12.04 ?|

作者：

來源：

德國Diebold JetSleeve ® 2.0 端面環噴熱縮刀柄

噴嘴環也是TIN涂層，這使得噴嘴更耐高壓介質，噴嘴不會磨損大小，所以不要改變直徑或流動方向。
通過創新的JetSleeve®2.0，一個工序就可以完成一個工件的全部加工，從而完全消除了磨損。 JetSleeve®2.0熱縮刀柄可用于重型加工，普通加工和微加工。
JetSleeve®在創新，環境和設計類別中榮獲多項獎項。



Diebold 熱縮夾頭HSK-A40
feingewuchtet G2,5 für 25.000 U/min.

Diebold 收縮夾頭HSK-A40

Order-No. d1 d2 d3 l1max A SW rpm
72.565.510.010 3 15 20 - 60 13 36000
72.565.510.040 4 15 20 - 60 13 36000
72.565.510.101 6 21 27 34 65 17 36000
72.565.510.201 8 21 27 36 65 17 36000
72.565.510.301 10 24 31 35 65 21 36000
72.565.510.401 12 24 31 35 65 21 36000

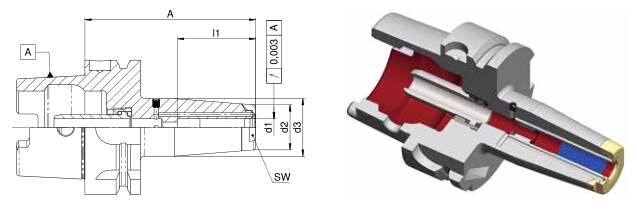

Diebold 熱縮夾頭HSK-A40 MMS

Diebold 收縮夾頭HSK-A40 MMS

Order-No. d1 d2 d3 l1max A SW rpm
72.565.512.010 3 15 20 28 60 13 36000
72.565.512.040 4 15 20 27 60 13 36000
72.565.512.101 6 21 27 32 65 17 36000
72.565.512.201 8 21 27 33 65 17 36000
72.565.512.301 10 24 31 33 65 21 36000
72.565.512.401 12 24 31 33 65 21 36000

Diebold熱縮夾頭HSK-E40
feingewuchtet G2,5 für 25.000 U/min.

Diebold收縮夾頭HSK-E40

Order-No. d1 d2 d3 l1max A SW rpm
72.568.510.010 3 15 20 - 60 13 42000
72.568.510.040 4 15 20 - 60 13 42000
72.568.510.101 6 21 27 31 65 17 42000
72.568.510.201 8 21 27 36 65 17 42000
72.568.510.301 10 24 31 35 65 21 42000
72.568.510.401 12 24 31 35 65 21 42000

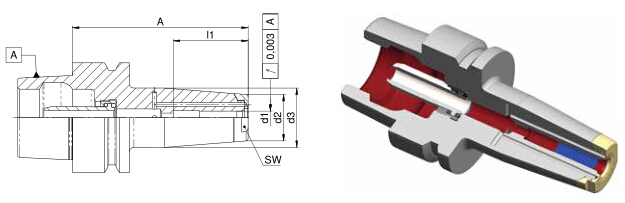

Diebold收縮夾頭HSK-E40 MMS

Diebold收縮夾頭HSK-E40 MMS

Order-No. d1 d2 d3 l1max A SW rpm
72.568.512.010 3 15 20 28 60 13 42000
72.568.512.040 4 15 20 28 60 13 42000
72.568.512.101 6 21 27 32 65 17 42000
72.568.512.201 8 21 27 33 65 17 42000
72.568.512.301 10 24 31 33 65 21 42000
72.568.512.401 12 24 31 33 65 21 42000

Diebold收縮夾頭HSK-A50
G2.5以25,000轉的速度精確平衡。

Diebold收縮夾頭HSK-A50

Order-No. d1 d2 d3 l1max A SW rpm
72.570.510.010 3 15 20 - 80 13 30000
72.570.510.040 4 15 20 - 80 13 30000
72.570.510.100 6 21 27 36 80 17 30000
72.570.510.200 8 21 27 36 80 17 30000
72.570.510.300 10 24 32 42 85 21 30000
72.570.510.400 12 24 32 46 90 21 30000
72.570.510.500 16 33 38 50 95 29 30000

Diebold收縮夾頭HSK-A50 MMS

Diebold收縮夾頭HSK-A50 MMS

Order-No. d1 d2 d3 l1max A SW rpm
72.570.512.010 3 15 20 - 80 13 30000
72.570.512.040 4 15 20 - 80 13 30000
72.570.512.100 6 21 27 36 80 17 30000
72.570.512.200 8 21 27 36 80 17 30000
72.570.512.300 10 24 32 42 85 21 30000
72.570.512.400 12 24 32 46 90 21 30000
72.570.512.500 16 33 38 50 95 29 30000

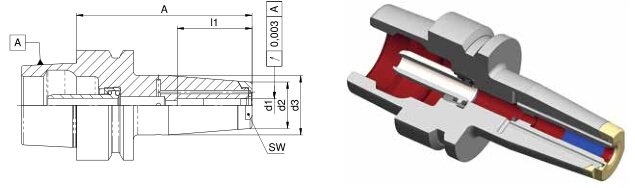

Diebold收縮夾頭HSK-E50
G2.5以25,000轉的速度精確平衡。

Diebold收縮夾頭HSK-E50

Order-No. d1 d2 d3 l1max A SW rpm
72.573.510.010 3 15 20 - 80 13 42000
72.573.510.040 4 15 20 - 80 13 42000
72.573.510.100 6 21 27 34 80 17 42000
72.573.510.200 8 21 27 36 80 17 42000
72.573.510.300 10 24 32 42 85 21 42000
72.573.510.400 12 24 32 46 90 21 42000
72.573.510.500 16 33 42 50 95 29 42000

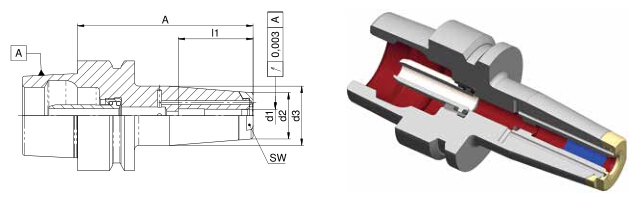

Diebold收縮夾頭HSK-E50 MMS

Diebold收縮夾頭HSK-E50 MMS

Order-No. d1 d2 d3 l1max A SW rpm
72.573.512.010 3 15 20 38 80 13 42000
72.573.512.040 4 15 20 38 80 13 42000
72.573.512.100 6 21 27 34 80 17 42000
72.573.512.200 8 21 27 36 80 17 42000
72.573.512.300 10 24 32 42 85 21 42000
72.573.512.400 12 24 32 46 90 21 42000
72.573.512.500 16 33 42 50 95 29 42000

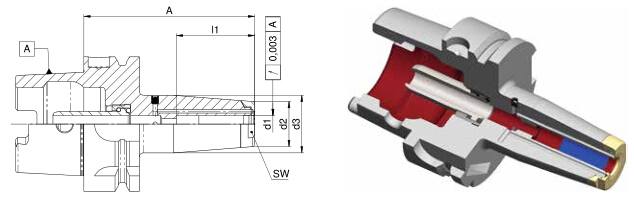

Diebold收縮夾頭HSK-A63
G2.5以25,000轉的速度精確平衡。

Diebold收縮夾頭HSK-A63

Order-No. d1 d2 d3 l1max A SW rpm
72.575.510.010 3 15 20 - 90 13 24000
72.575.510.040 4 15 20 - 90 13 24000
72.575.510.101 6 21 27 36 80 17 24000
72.575.510.201 8 21 27 36 80 17 24000
72.575.510.301 10 24 32 42 85 21 24000
72.575.510.400 12 24 32 47 90 21 24000
72.575.510.500 16 33 42 50 95 29 24000
72.575.510.600* 20 44 53 52 100 40 24000

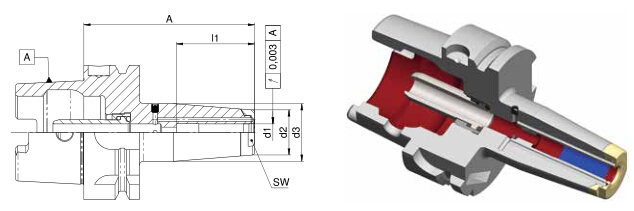

Diebold收縮夾頭HSK-A63 MMS

Diebold收縮夾頭HSK-A63 MMS

Order-No. d1 d2 d3 l1max A SW rpm
72.575.512.010 3 15 20 - 90 13 24000
72.575.512.040 4 15 20 - 90 13 24000
72.575.512.101 6 21 27 36 80 17 24000
72.575.512.201 8 21 27 36 80 17 24000
72.575.512.301 10 24 32 42 85 21 24000
72.575.512.400 12 24 32 47 90 21 24000
72.575.512.500 16 33 42 50 95 29 24000
72.575.512.600* 20 44 53 52 100 40 24000

Diebold收縮夾頭HSK-F63
G2.5以25,000轉的速度精確平衡。

Diebold收縮夾頭HSK-F63

Order-No. d1 d2 d3 l1max A SW rpm
72.579.510.010 3 15 20 - 90 13 36000
72.579.510.040 4 15 20 - 90 13 36000
72.579.510.100 6 21 27 36 90 17 36000
72.579.510.200 8 21 27 36 90 17 36000
72.579.510.300 10 24 32 42 90 21 36000
72.579.510.400 12 24 32 47 90 21 36000
72.579.510.500 16 33 42 50 95 29 36000
72.579.510.600* 20 44 53 52 100 40 36000

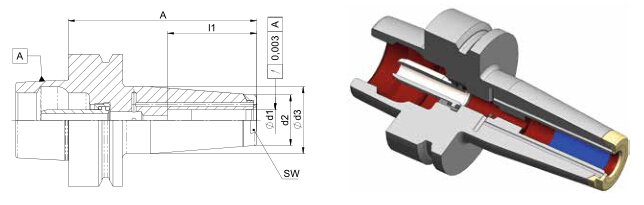

Diebold收縮夾頭HSK-F63 MMS

Diebold收縮夾頭HSK-F63 MMS

Order-No. d1 d2 d3 l1max A SW rpm
72.579.512.010 3 15 20 - 90 13 36000
72.579.512.040 4 15 20 - 90 13 36000
72.579.512.100 6 21 27 36 90 17 36000
72.579.512.200 8 21 27 36 90 17 36000
72.579.512.300 10 24 32 42 90 21 36000
72.579.512.400 12 24 32 47 90 21 36000
72.579.512.500 16 33 42 50 95 29 36000
72.579.512.600* 20 44 53 52 100 40 36000

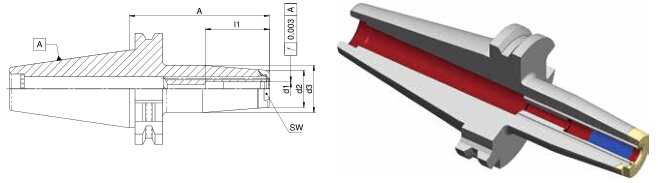

Diebold收縮夾頭SK40
DIN 69871 A-D
G2.5以25,000轉的速度精確平衡。

Diebold收縮夾頭SK40

Order-No. d1 d2 d3 l1max A SW rpm
72.060.510.010 3,0 15,0 20,0 - 80 13 18000
72.060.510.040 4,0 15,0 20,0 - 80 13 18000
72.060.510.100 6,0 21,0 27,0 36 80 17 18000
72.060.510.200 8,0 21,0 27,0 36 80 17 18000
72.060.510.300 10,0 24,0 32,0 42 80 21 18000
72.060.510.400 12,0 24,0 32,0 47 80 21 18000
72.060.510.500 16,0 33,0 42,4 50 80 29 18000
72.060.510.600* 20,0 44,0 50,0 52 80 40 18000

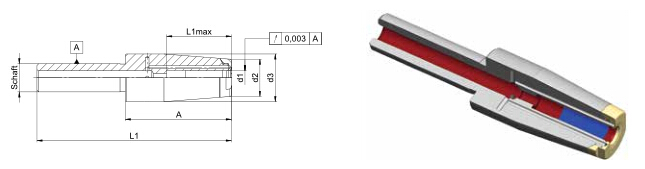

Diebold Shrink Fit Reductions

Diebold Shrink Fit Reductions

Order-No. Shank d1 d2 d3 l1 A SW l1max
75.510.203 zyl.16 3 15 20 110 60 13 -
75.510.204 zyl.16 4 15 20 110 60 13 -
75.510.206 zyl.16 6 21 27 110 60 17 36
75.510.208 zyl.16 8 21 27 110 60 17 36
75.510.310 zyl.20 10 24 32 110 65 21 42
75.510.312 zyl.20 12 24 32 110 65 21 46
